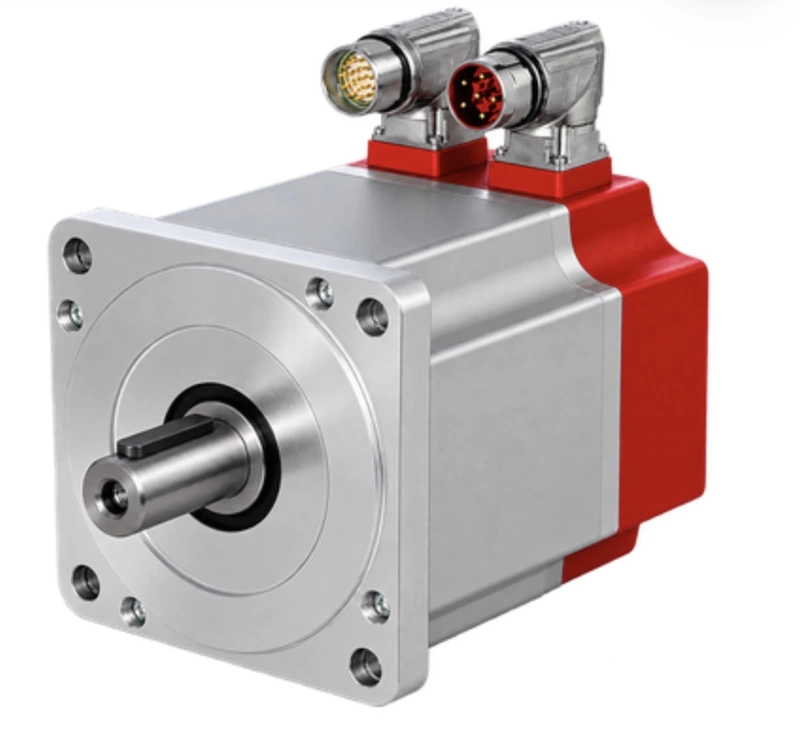

220V, 750W Servo Motor with a rated speed of 3000 RPM and Absolute Optical Encoder for accurate position feedback. Designed for precise, smooth, and reliable motion control, making it ideal for CNC machines, robotics, packaging equipment, automation systems, and other industrial applications.
₹19,999.00
Downloads
Product Details
Specifications
AC Servo Motor
- Rated Voltage (V):220
- Rated Speed (RPM):3000
- Rated Torque (Nm):2.4
- Rated Output Power (W):750
- Rotor Inertia [(kg·m²)·10]:1.3
- Electrical Time Constant (ms):3.9
- Max. Speed (RPM):6000
- Instantaneous Max. Torque (Nm):7.2
- Torque Coefficient (Nm/A):0.54
- Rated Current (A):4.8
- Max. Instantaneous Current (A):14.4
- Brake:No
