48V,750W,2.4Nm, ABSOLUTE OPTICAL ENCODER
Non-returnable
₹16,000.00 ₹18,000.00
Downloads
Product Details
Specifications

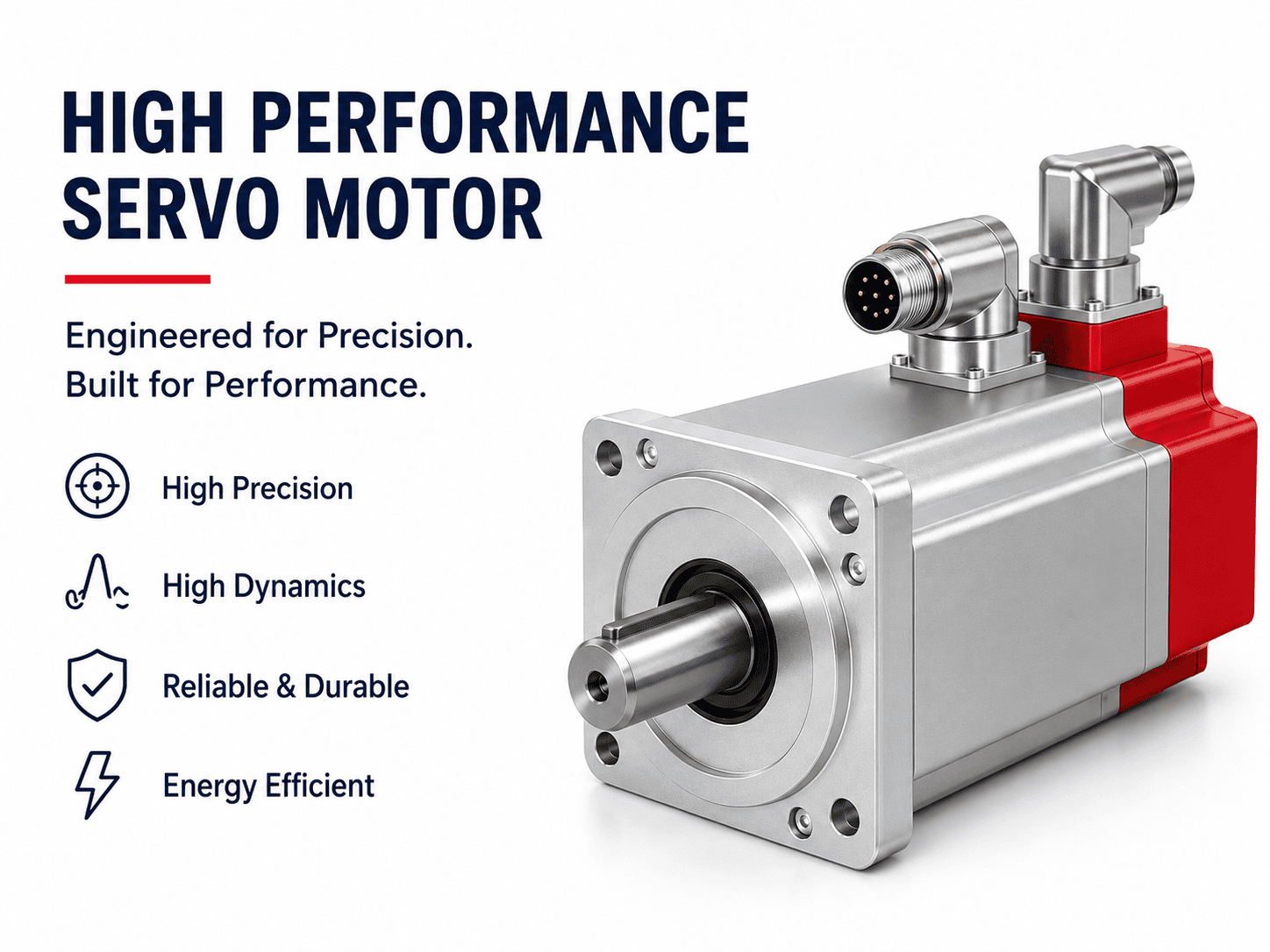

AC Servo Motor
- Rated Voltage (V):48
- Rated Speed (RPM):3000
- Rated Torque (Nm):2.4
- Rated Output Power (W):750
- Rotor Inertia [(kg·m²)·10]:1.108
- Electrical Time Constant (ms):7.35
- Max. Speed (RPM):3500
- Instantaneous Max. Torque (Nm):6.9
- Torque Coefficient (Nm/A):0.13
- Weight (Kg):3.0
- Rated Current (A):18.4
- Max. Instantaneous Current (A):55.2
