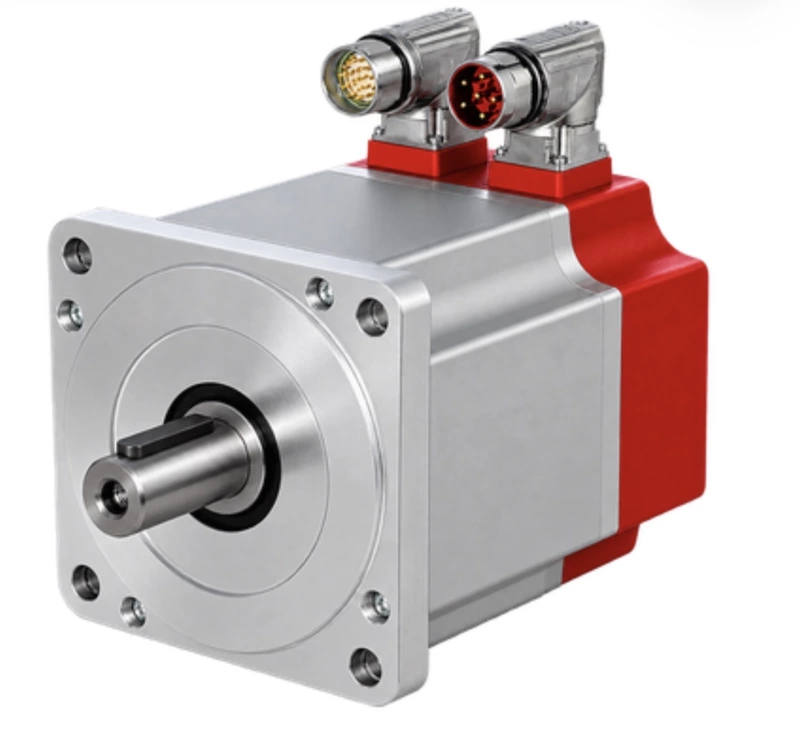

2.3KW, 15Nm AC SERVO MOTOR WITH BRAKE
220V, 2.3W, 1500RPM, 15Nm, INTEGRATED BRAKE, ABSOLUTE OPTICAL ENCODER
Non-returnable
₹70,000.00 ₹85,000.00
Downloads
Product Details
Our servo motors are designed to provide precise speed, position, and torque control for modern automation systems. Manufactured using high-quality components, they offer excellent efficiency, low maintenance, and reliable performance in demanding industrial environments.
Key Features:
- High positioning accuracy
- High torque and dynamic response
- Energy-efficient operation
- Compact and robust design
- Low maintenance
- Suitable for CNC, robotics, packaging, textile, and automation machinery
- Available in multiple power ratings and frame sizes
Specifications
AC Servo Motor
- Rated Voltage (V):220
- Rated Speed (RPM):1500
- Rated Torque (Nm):15
- Rated Output Power (W):2300
- Rotor Inertia [(kg·m²)·10]:29.16
- Electrical Time Constant (ms):4.05
- Max. Speed (RPM):2000
- Instantaneous Max. Torque (Nm):30
- Torque Coefficient (Nm/A):1.58
- Rated Current (A):9.5
