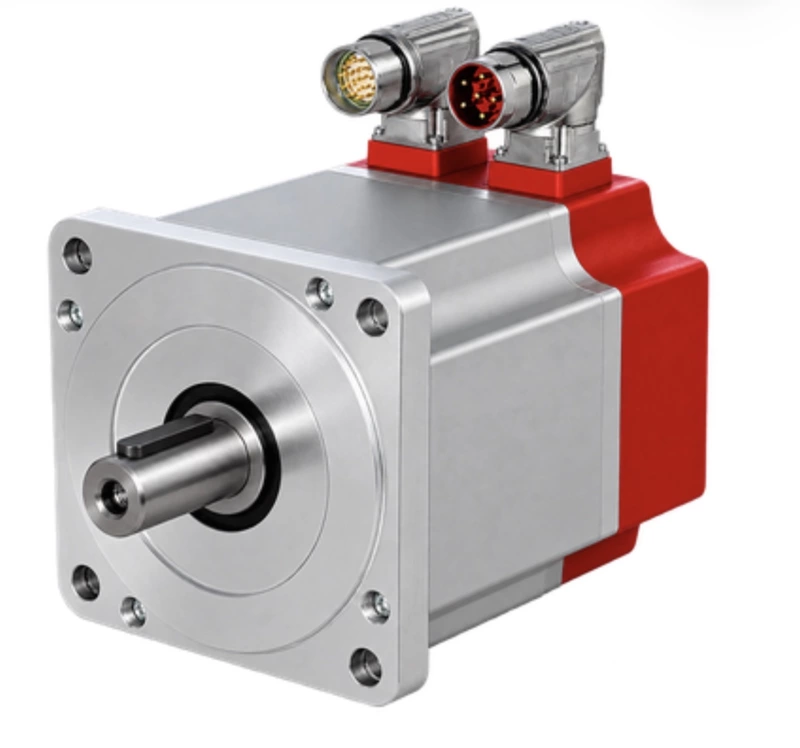

1KW, 3.2Nm AC SERVO MOTOR WITH BRAKE
220V, 1KW, 3000RPM, INTEGRATED BRAKE, ABSOLUTE OPTICAL ENCODER
Non-returnable
₹32,000.00 ₹37,000.00
Downloads
Product Details
Our servo motors are designed to provide precise speed, position, and torque control for modern automation systems. Manufactured using high-quality components, they offer excellent efficiency, low maintenance, and reliable performance in demanding industrial environments.
Key Features:
- High positioning accuracy
- High torque and dynamic response
- Energy-efficient operation
- Compact and robust design
- Low maintenance
- Suitable for CNC, robotics, packaging, textile, and automation machinery
- Available in multiple power ratings and frame sizes
Specifications
AC Servo Motor
- Rated Voltage (V):220
- Rated Speed (RPM):3000
- Rated Torque (Nm):3.2
- Rated Output Power (W):1000
- Rotor Inertia [(kg·m²)·10]:1.9
- Electrical Time Constant (ms):3.7
- Max. Speed (RPM):6000
- Instantaneous Max. Torque (Nm):9.6
- Torque Coefficient (Nm/A):0.55
- Weight (Kg):3.7
- Rated Current (A):6.4
- Max. Instantaneous Current (A):19.2
